Nasko N-SILK v1.1 for PLUGDATA-FX

FANTASTiC | 19 November 2025 | 2 MB

N-SILK｜革新性频谱共振抑制器｜动态阈值×相位抵消×精准频段控制​

核心价值​

N-SILK 是一款基于 粉红噪声动态阈值​ 与 频谱自乘相位抵消技术​ 的共振抑制工具，通过智能识别并消除问题频段（如刺耳齿音、箱琴共鸣），解决传统动态EQ需手动定位频点的痛点，同时支持外部侧链信号实现创造性频段闪避与声场塑形。

技术原理与创新​

⚙️ 动态共振抑制引擎​

  • 粉红噪声阈值基准：
    • 自动识别并抑制超过自然粉红噪声能量曲线的频段（如人声5kHz尖锐峰）
    • 避免传统压缩器/动态EQ需手动设定阈值导致的过度处理
  • 频率自乘相位抵消：
    • 通过信号自身频率相乘生成反相抵消波，精准消除共振峰
    • SILK旋钮控制抵消强度（越高则覆盖频段越广）

🎛️ 双节点频谱滤波器​

控制节点​ 功能​ 听觉影响​
主节点​ 调整中心频率与滤波宽度 聚焦问题频段范围（如吉他200-800Hz箱体共鸣）
斜率节点​ 控制滤波器边缘斜率 锐利斜率（金属感抑制） / 平缓斜率（自然过渡）

🌀 高级调制系统​

  • 频谱平滑（Smooth）：降低处理带来的颗粒感，牺牲细节换取自然度
  • 释放时间（Release）：延长抵消信号衰减时间，适配长音尾乐器（如钢琴延音）
  • 外部侧链输入：
    • 输入人声信号自动闪避吉他中频冲突频段
    • 输入底鼓信号动态抑制贝斯低频共振

工作流场景​

🎤 人声处理​

  • 齿音消除：中心频率设6-8kHz，SILK=40%，Smooth=中
  • 喉音共振抑制：中心频率设800Hz-1.2kHz，斜率平缓

🎸 乐器优化​

  • 原声吉他箱体共鸣：主节点定位180Hz，SILK=30%
  • 贝斯低频掩蔽：侧链输入底鼓信号，触发80-120Hz动态闪避

🎧 创意应用​

  • Delta模式：独听抵消信号作为特殊效果音源
  • 频段变形：侧链输入合成器信号，实时调制人声频段结构

安装与兼容性​

  • 运行环境：需PlugData 0.9.2（开源可视化音频编程平台）
  • 安装方式：拖拽.plugdata文件至PlugData窗口
  • 系统支持：Windows/macOS/Linux（依赖PlugData跨平台性）

N-SILK 以“让共振抑制像呼吸般自然”为理念，成为混音中的智能频谱外科医生。​

💡 操作哲学：

  • 优先使用粉红噪声基准自动处理，再通过频谱图微调
  • 侧链功能不仅是工具，更是频段“对话”的翻译器

适用人群：

  • 追求高效精准处理的混音师
  • 实验电子声音设计师
  • 现场调音师（需搭配支持侧链的硬件调音台）
N-SILK is a spectral resonance suppressor with a dynamic threshold + spectral filter, giving you fast and easy control over problematic frequencies and spectral sidechain masking/ducking.

N-SILK tries to simplify the process of dynamic resonance suppression by having a dynamic threshold, utilizing controllable self multiplication of frequencies and a threshold based on pink noise.

N-SILK also comes with the spectrum smoothing known from spec comp, which smoothes out the details while keeping the fundamentals consistent.

You can also use external sidechain signals to do frequency masking / ducking, which it is surprisingly good at!

SILK
The main SILK dial adjusts the amount of resonance suppression.

N-SILK applies frequency-self multiplication to differenciate loud frequencies from quiet ones. The higher the SILK amount, the more of the quieter frequencies will be included in the phase cancellation signal, which N-SILK uses to subtract frequencies from a dry signal

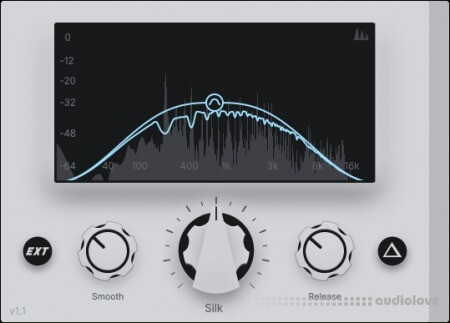

THE SPECTRUM GRAPH
N-SILK comes with a detailed spectrum graph and a SPECTRAL FILTER, which you can control with the two available nodes, one of which pops up when hovering over it.

With how N-SILK handles the dynamic threshold based on pink noise, N-SILK doesn't require boosting of frequencies to suppress them further. Contrary to other resonance suppressor effects, N-SILK accounts for frequencies that naturally exceed the pink noise slope, meaning that any additional biased suppression should rather be done with a dynamic eq. You can get some bias by adjusting the SLOPE of the filter and its' position if necessary.

The main NODE adjusts the center frequency and width of the spectral filter. The node above it adjusts the SLOPE of the filter.

You can change the spectrum render style with the spectrum icon.

SPECTRAL SMOOTHING AND RELEASE
N-SILK creates a phase inverted signal based on an analysis signal. This analysis signal can be averaged out across the spectrum and decayed over time, which further helps shape the resonance suppression to your needs.

SMOOTH helps reduce noisy sounding suppression at a cost of accuracy on the very tiny details.

RELEASE adds a decay to the analysis signal, which effectively supresses frequencies past their original length. This is especially useful to reduce noisy suppression and for sidechain ducking.

SIDECHAIN AND DELTA
N-SILK allows for an external sidechain signal to be used as the analysis signal, which opens up a wide array of use cases. This can range from spectral masking for mixing purposes to spectral sidechain ducking to morphing.

Enable sidechain mode by clicking the EXT button.

N-SILK also allows you to listen to the phase inverted signal for transparency, but this can also be used for creative purposes.

Enable DELTA mode by clicking the DELTA button.

And that's pretty much it! You can also DAW automate Silk, Smooth and Release for even more control! Have fun!

HOW TO INSTALL:
INSTALL/UPDATE TO PLUGDATA 0.9.2

DRAG AND DROP THE .PLUGDATA FILE INTO PLUGDATA
